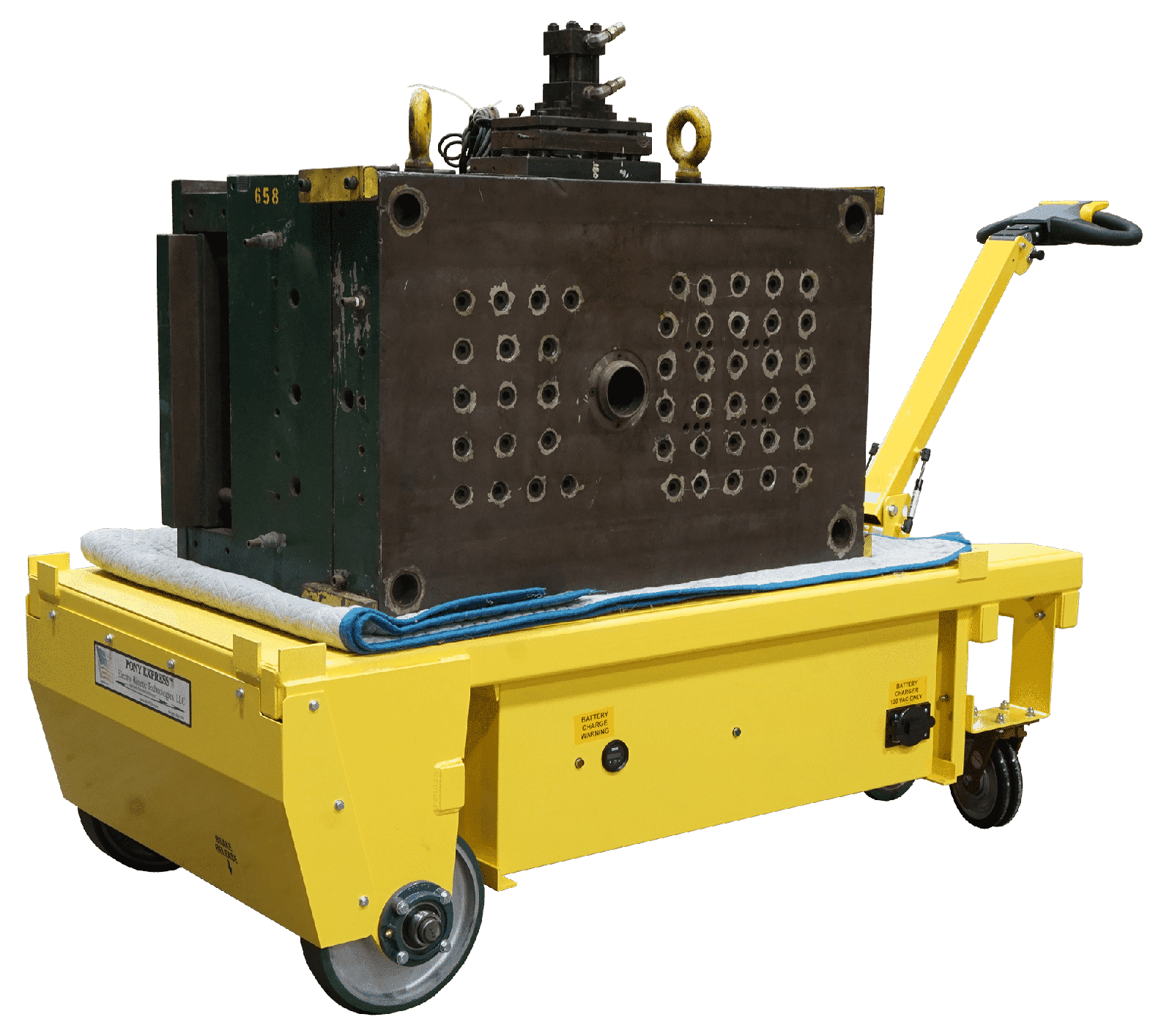

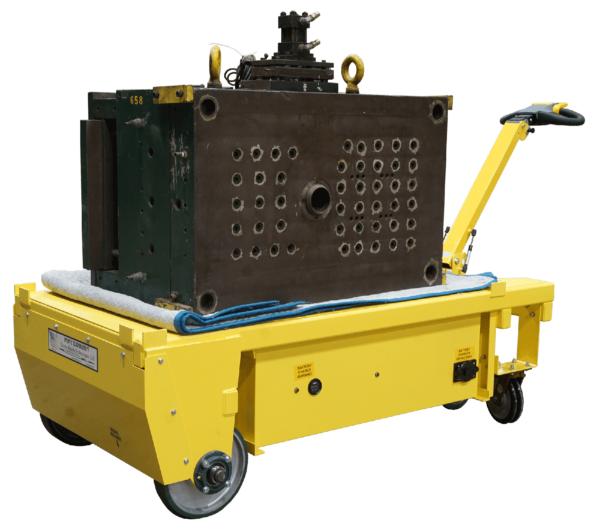

The Pony Express AC Vector cart is the top end of the EK Tech motorized platform cart range, built for plants that need to walk die sets, coils, fixtures, and machine bases weighing up to 30,000 lb across the floor without a forklift. Where the smaller Pony Express carts use DC drives, this line runs a 1.7 kW 48 VDC bus with 3 phase AC Vector Power drive, so full torque is available across the whole speed band and the operator can creep a fifteen ton load at 0.1 mph with real precision.
Steering is fully electronic. The steer by wire system swings the drive wheel 90 degrees left or right, which lets the cart turn around in roughly its own length and removes the hydraulic steering components that usually need maintenance on machines this size. Braking is regenerative, so the AC ReGen system pushes kinetic energy back into the battery pack every time the cart slows down and stretches the interval between charges.

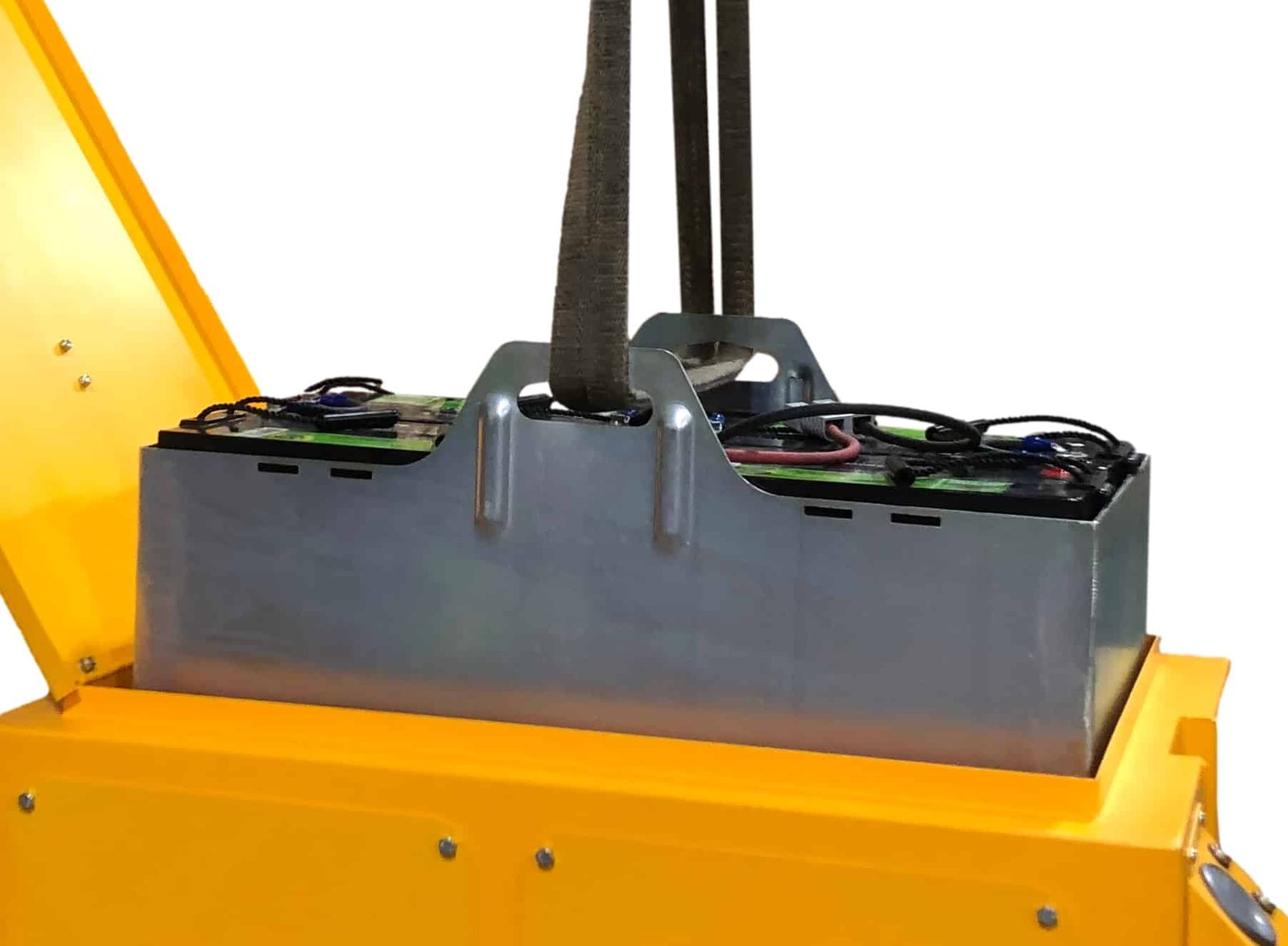

Power comes from cradled battery packs in either AGM or lithium iron phosphate chemistry, sized from 100 to 360 Ah. The cradle design means a depleted pack can be lifted out and a fresh one dropped in, which keeps the cart working through multi shift operations instead of sitting on a charger. An onboard monitor shows state of charge, consumed amp hours, and pack voltage, and a Bluetooth app mirrors it all on a smartphone.

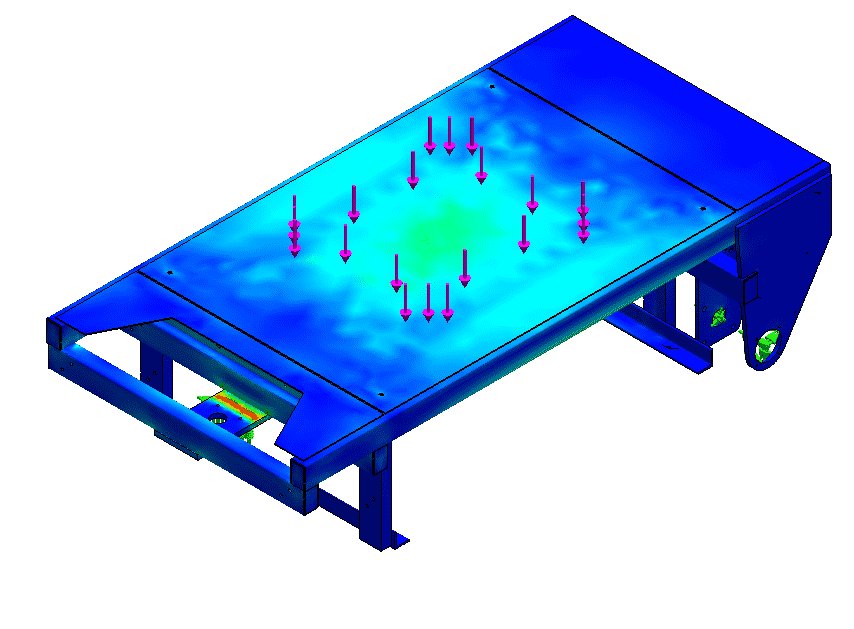

The standard usable deck is 36 by 62 inches on a welded steel chassis that EK Tech validates with finite element analysis, and custom deck sizes and tops are available for odd shaped loads. Every AC Vector cart is configured to order, so pricing is by quote.
| Capacity | Up to 30,000 lb |
| Standard usable deck size | 36 in wide x 62 in long |
| Deck options | Custom sizes and tops available |
| Drive system | 1.7 kW 48 VDC bus with 3 phase AC Vector Power drive |
| Drive wheel | 12 in diameter with polyurethane tread |
| Speed low setting | 0.1 to 1.5 mph |
| Speed high setting | 0.1 to 3 mph |
| Steering | Electronic steer by wire with 90 degree wheel movement |
| Service braking | AC ReGen regenerative braking |
| Parking brake | Electromagnetic |
| Chassis | Welded steel frame validated by finite element analysis |
| AGM battery options | 48 VDC in 100, 200, or 300 Ah |
| Lithium battery options | 48 VDC lithium iron phosphate in 120, 240, or 360 Ah |
| Charger | Internal mount with optional external station for swappable packs |
| Charger input | 120 or 240 VAC single phase 50 or 60 Hz |
| Operating temperature | Minus 40 to 158 F |
| Charging temperature | Minus 9 to 140 F |
| Ingress protection | IP44 |
| Noise level | Under 65 dBA |

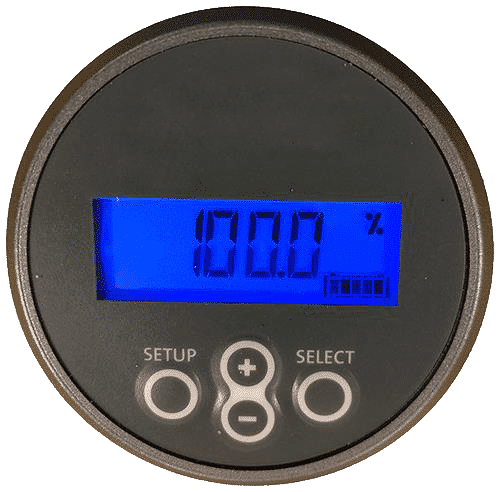

| Battery monitoring | Onboard display plus Bluetooth smartphone app |
The AC Vector 10K-30K is configured to order. Every option below is priced in your quote. Call us toll free at 1-888-233-5563 and we will walk through the choices with you and confirm current pricing and lead time.
The most useful companion for this cart is the external charging station, which lets a spare battery pack charge while the cart keeps working on its installed pack. Spare cradled AGM or lithium packs are available for true hot swap rotation, and custom deck tops can be fitted for specific tooling or product shapes. Because these carts are configured to order, EK Tech can also quote application specific additions during the engineering review.
We sell the AC Vector 10K-30K on a quote basis so we can pair you with the right configuration and the best available price. Call us toll free at 1-888-233-5563 or use our contact form and we will have a quote back to you the same business day in most cases.
Most products in this range do not meet the strict medical device rules that Medicare and Medicaid use, so they rarely qualify for coverage. We do not work with Medicare and we do not bill private insurance directly.
Some private plans will reimburse you outside of the Medicare framework. The best way to find out is to call your insurer and ask. If they say yes, we are happy to provide an invoice and proof of purchase so you can file for reimbursement.
Notice to Medicare and Medicaid beneficiaries. Medicare pays for equipment only when the supplier has a Medicare supplier number. Heavy Duty Mobility does not have one, so Medicare will not pay for anything we sell you. You are personally and fully responsible for payment.
Orders typically leave the warehouse within one to three business days. Once on the way, expect a transit time of around three to seven business days depending on your distance from the warehouse.
The stock status sits just under the product title near the top of this page. If it shows a lead time, the ship out window is that lead time plus the normal transit time above.
Yes. As soon as your order ships we email you a tracking link so you can follow it all the way to your door.
EK Tech backs the AC Vector 10K-30K with a manufacturer limited warranty. The exact coverage terms for this model are listed in the Specifications tab and the product documentation. Normal wear items and damage from misuse or accidents are excluded, as with all manufacturer warranties.
If something goes wrong, reach out to us first. We can often sort out a fix over the phone or ship a replacement part. Contact us and we will help.
Yes, returns are possible. Please read the full returns policy for the details.
EK Tech publishes the AC Vector cart specification set on its motorized platform cart pages and supplies full operator documentation with each configured build. We can send the current spec sheet with your quote.
Daily use is walk behind and simple. The operator drives from a tiller style handle with two speed ranges, a low band of 0.1 to 1.5 mph for precise positioning and a high band up to 3 mph for longer runs. Steer by wire keeps steering effort near zero even with a full load, which protects operators from the strain injuries common with manual die carts.
Charging happens through the internally mounted charger from a 120 or 240 VAC single phase outlet. Facilities running multiple shifts usually add the external charging station and a second battery pack, then rotate packs through the cradle so the cart never waits on a charger. The regenerative braking system feeds energy back into the pack during every stop, and the onboard monitor plus the Bluetooth app make pack health easy to track.
This is a facility machine, not a folding transport product. It rolls on its own wheels between buildings on hard surfaces, stores indoors, and needs no fuel, hydraulic fluid, or scheduled steering maintenance.
The line covers configured builds from 10,000 lb up to 30,000 lb of load on the deck. Every build is checked with finite element analysis at its rated capacity. If you need even more payload or rail guidance, EK Tech transfer carts pick up where this line ends.
EK Tech prices these carts by quote because capacity tier, deck size, and battery package all change the build. Call us with your load details and we will return a firm quote with the right configuration.
AGM packs in 100 to 300 Ah cost less and suit single shift use. Lithium iron phosphate packs in 120 to 360 Ah run longer, charge faster, and handle multi shift duty better. Both are cradled for easy removal and hot swapping.
The drive wheel swings a full 90 degrees each way, so the cart turns around in roughly its own length. Steering effort stays near zero with a full load, which reduces operator fatigue and strain injuries, and there are no hydraulic steering components to maintain.
Yes. The standard usable deck is 36 inches wide by 62 inches long, and EK Tech offers custom deck sizes and custom tops for dies, coils, and fixtured loads as part of the factory quote.
The standard charger is mounted inside the cart and plugs into a 120 or 240 VAC single phase outlet. For around the clock operations, add the external charging station and a spare pack, then swap packs in the cradle so the cart never sits idle. Regenerative braking also returns energy to the pack during every stop.
Yes. EK Tech engineers and builds its Pony Express carts and tuggers in Wisconsin and supports them domestically.
EK Tech, formally Electro Kinetic Technologies, is a Wisconsin based manufacturer that designs and builds its motorized carts and tuggers in America and is a member of MHI, the national material handling industry association. The company specializes in ergonomic load moving equipment, and its engineering led approach shows in this product line. Designs are validated with finite element analysis before they ship, the AC Vector drive and AC ReGen braking are the company's own developments, and the Pony Express family scales from 1,000 lb utility carts to the 30,000 lb machines on this page. Hospitals, factories, and government facilities across the country run EK Tech equipment daily, which is exactly the track record you want behind a cart that carries fifteen tons.
